Half Magnetic Drum Half Magnetic Drum

Half Magnetic Drum

.
  • MOQ :

    1
  • origin :

    China
Product Details

General Description

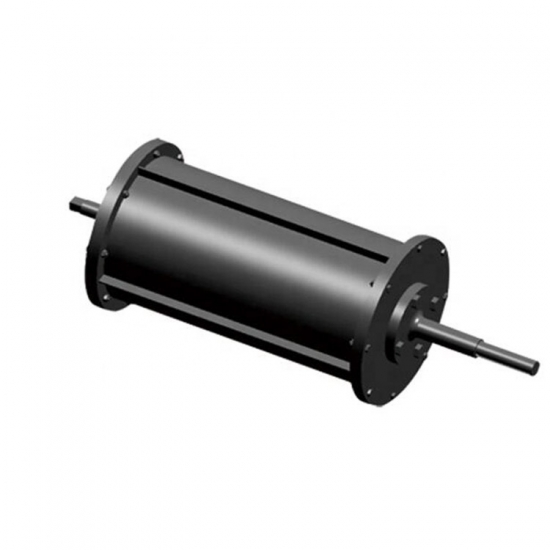

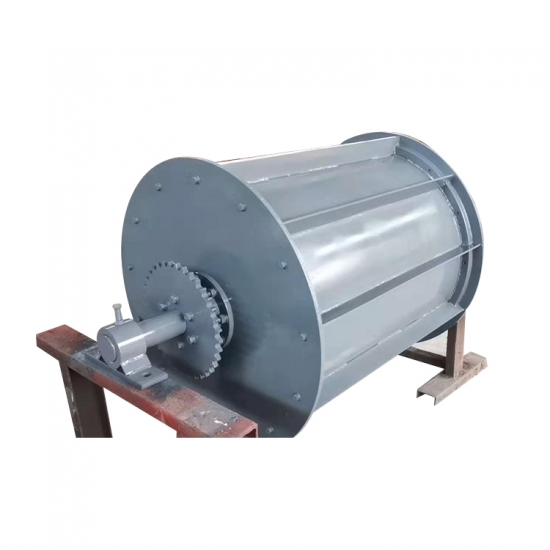

Half Magnetic Drum ,also named half magnetic roller,has a half disc(180 degree) stationary magnetic section that is covered by a revolving round stainless steel shell with rotation axis. It can form an automated separating system together with electric drive motor.



Features


1.Continuous self-cleaning design is suitable for automated production line.

2.Surface material is 304 or 316L stainless steel,good corrosion resistance and no pollution.

3.No electric power required for magnetic field generation.

4.Magnetic strength can be chosen by customer.



Applications



Half Magnetic Drum is mainly used to remove or sort ferrous fines,tramp iron and other ferro magnetic materials from bulk dry material flow such as iron ore,grain,sand, gravel,plastics,wood,

waste,cullet etc

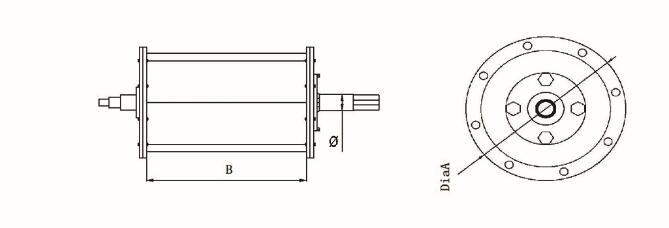

Specifications


Model No

Dimension(mm)

Weight(kg)



Dia A

B

         ∅

重量

MDM2130

215

300

25

29

MDM2135

215

350

25

34

MDM2140

215

400

25

39

MDM2145

215

450

25

44

MDM2150

215

500

25

49

MDM2160

215

600

25

59

MDM2170

215

700

25

69

MDM2180

215

800

25

79

MDM2190

215

900

25

89

MDM2110

215

1000

25

99

MDM3130

315

300

25

62

MDM3135

315

350

25

72

MDM3140

315

400

25

82

MDM3145

315

450

25

92

MDM3150

315

500

25

102

MDM3160

315

600

25

122

MDM3170

315

700

25

142

MDM3180

315

800

25

162

MDM3190

315

900

25

182

MDM3110

315

1000

28

202

MDM3111

315

1100

28

222

MDM4030

400

300

28

100

MDM4035

400

350

28

116

MDM4040

400

400

28

132

MDM4045

400

450

28

148

MDM4050

400

500

28

164

MDM4060

400

600

28

180

MDM4070

400

700

28

196

MDM4080

400

800

35

212

MDM4090

400

900

35

228

MDM4010

400

1000

35

244

MDM4011

400

1100

35

260

MDM4012

400

1200

35

276
