Xiamen Kingsmagnet has been in magnet industry for 10 more years.

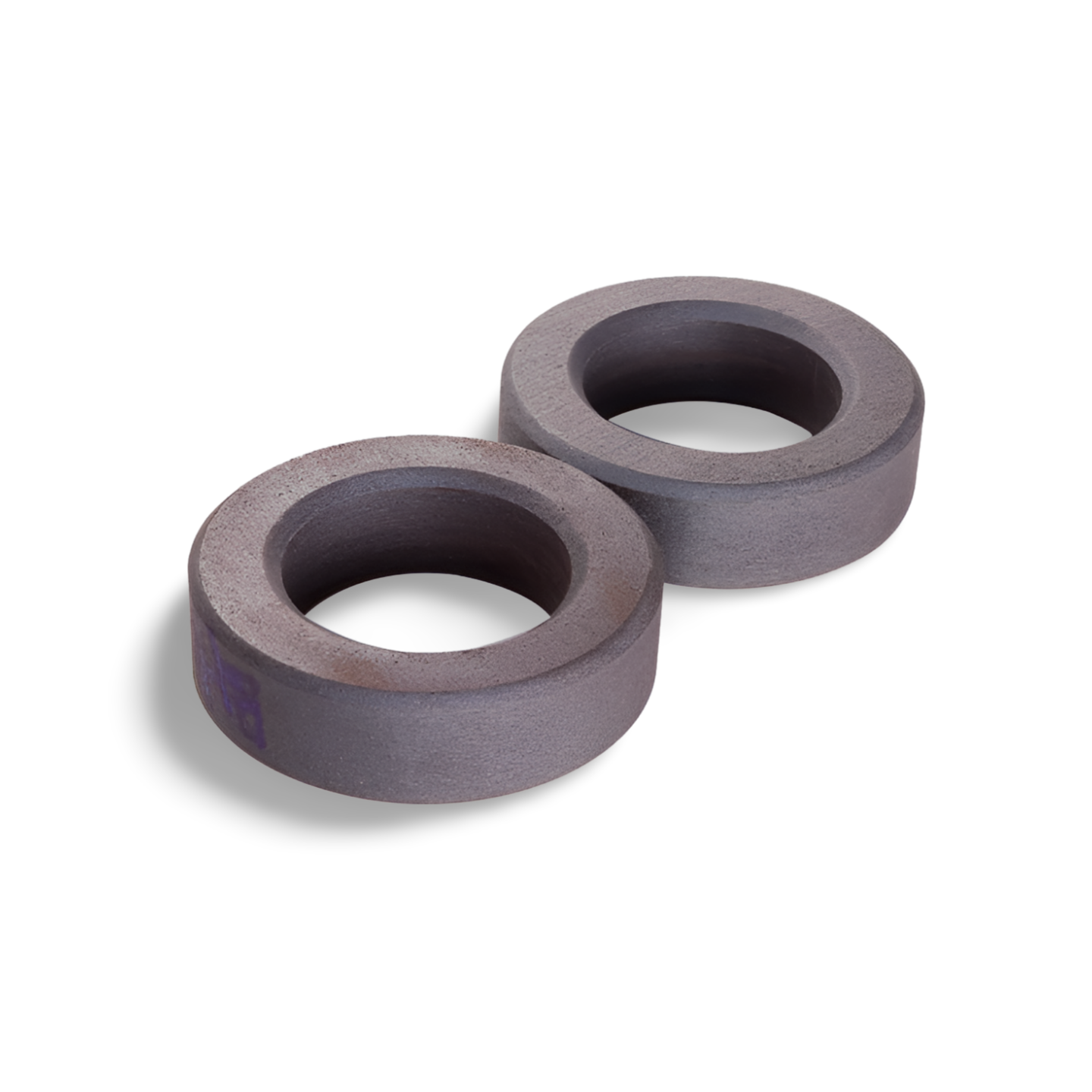

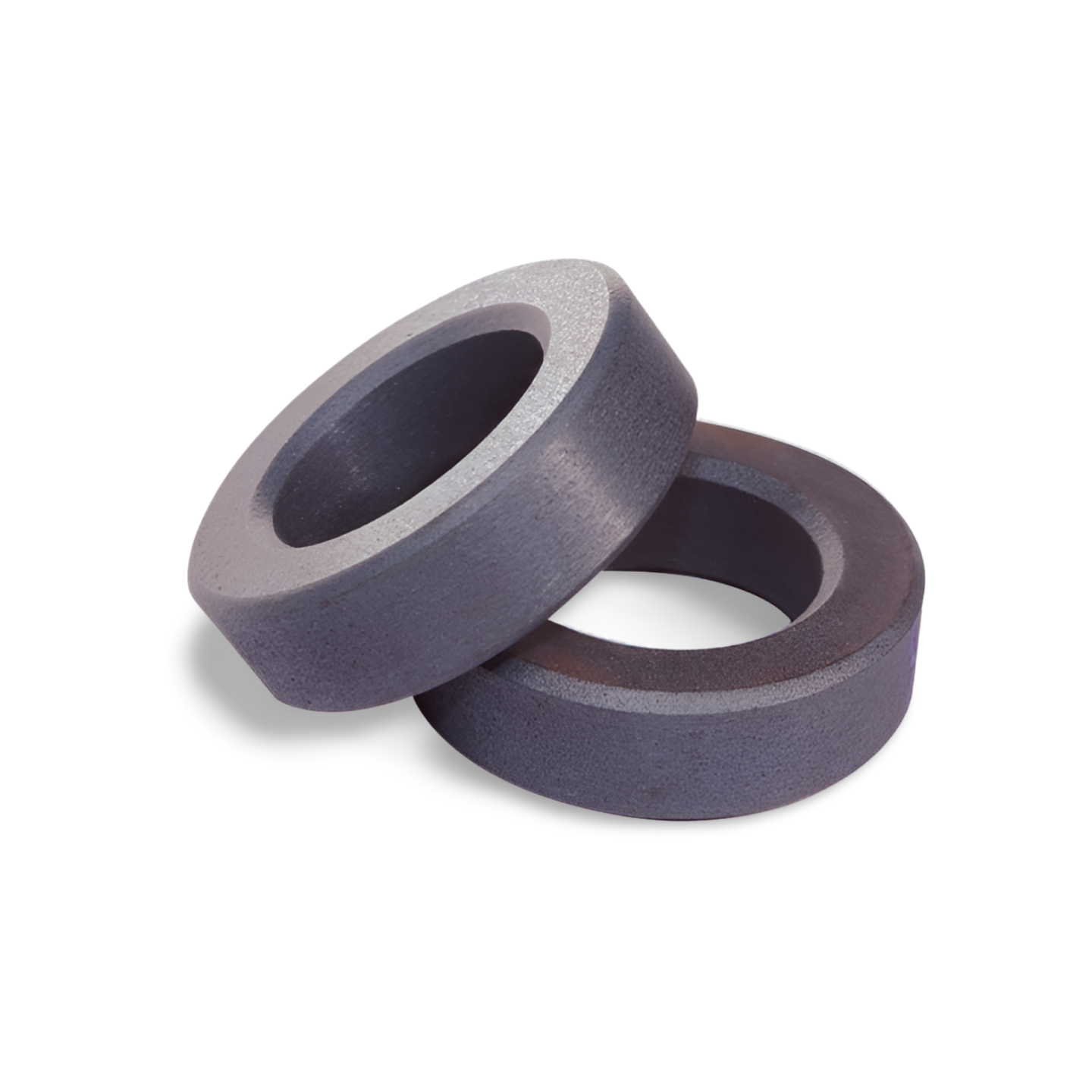

We could provide the high quality large ring ferrite magnet products.
.MOQ :
100origin :
ChinaColor :
CustomPort :
Xiamen/Ningbo/ShanghaiLead Date :
30-38 daysPriceRange:
1000-9999/0.2PriceRange:
100-1000/3PRODUCT DETAILS
The size,shape and grade of magnet can be produced according to your request.Welcome to contact us
for futher informations.
Available dimensions
We have professional team, advanced equipment and well-trained QC staff to develop different sizes and shapes
magnets as customer requirements which can be ensured with very high quality and precise tolerance.
Please see below dimensions of Ring Ferrite magnet:
Outer Diameter(mm)
Inner Daimeter(mm)
Hight (mm)
Tolerance or
Wall Thickness (mm)
Direction of Magnetzation
3 ≦ OD ≦ 240
1 ≦ ID ≦ 200
1 ≦ H ≦ 80
+/-0.05 - +/-0.1
Axial Magnetized
3 ≦ OD ≦ 90
1 ≦ ID ≦ 70
1 ≦ H ≦ 80
+/-0.05 - +/-0.1
Diametrical Magnetized
20 ≦ OD ≦ 75
15 ≦ ID ≦ 68
5 ≦ H ≦ 50
2 ≦ T ≦ 7
Radial Magnetized
Products Description
Ferrite magnets are sintered permanent magnetic materials, consisting of barium and strontium ferrite, which have the advantage of low cost in addition to strong antidemagnetization properties. Ferrite magnets are rigid and brittle and require special machining processes. Due to their low cost, ferrite magnets have a wide range of applications, from motors and speakers to toys and handicrafts, and are therefore the most widely used permanent magnet material today.
Produced by powder metallurgy method, low remanent magnetization and small remanent magnetic permeability. Coercive force is large, anti demagnetization ability is strong, especially suitable for dynamic working conditions of the magnetic circuit structure. The material is hard and brittle, and can be used in diamond tools for cutting and processing. The main raw material is oxide, so it is not easy to corrode. Working temperature: -40℃ to +200℃.
Ferrite magnets are divided into anisotropic (anisotropic) and isotropic (isotropic). Isotropic sintered ferrite magnets have weak magnetic properties but can be magnetized in different directions of the magnet; anisotropic sintered ferrite magnets have strong magnetic properties but can only be magnetized along the intended magnetization direction of the magnet.

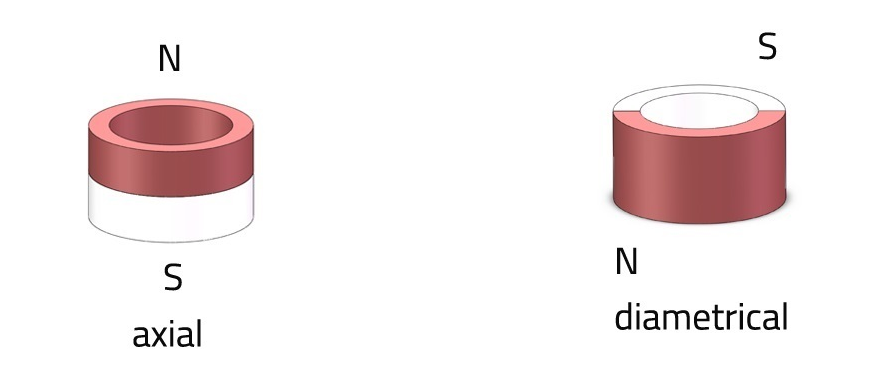

The direction of magnetization

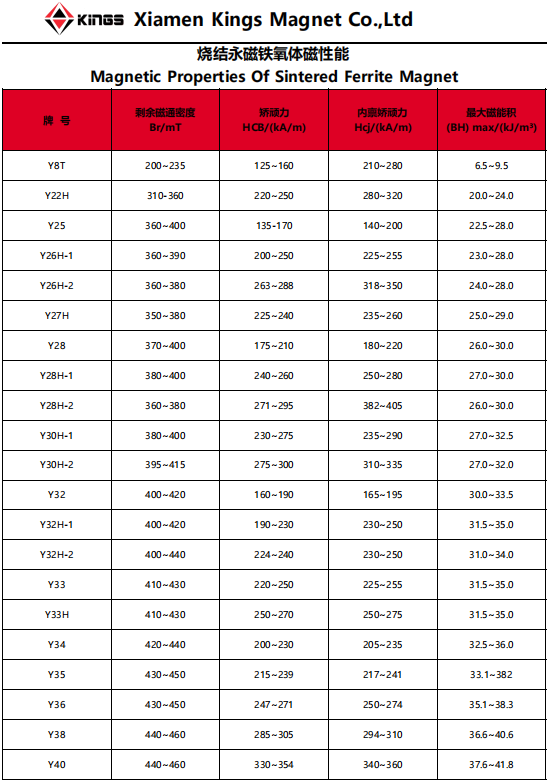

Magnetic Properties Of Ferrite Magnet
Certifications
ISO9001
TS16949
REACH
Packaging And Shipping
FAQ
Q1. Can I order samples of neodymium magnets?
A: Yes, we welcome sample orders to test and check the quality. Mixed samplesareacceptable.
Q2. What about delivery time?
A: It takes 3-5 days for samples, and about 25 days for mass production.
Q3. Do you have a MOQ limit for neodymium magnet orders?
A: Low MOQ, 1 piece can be provided for sample inspection, but the buyer will pay the freight by himself.
Q4. How do you ship your goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. Usually it takes 3-5 days to arrive. Air and sea shipping are also optional.
Q5. How to deal with orders for neodymiummagnets?
A:First, let us know your requirements.
Secondly, we quote according to your request or our suggestion.
Third, the customer confirms the sample and makes a deposit for the formal order.
Fourth, we arrange production.
Q6. Can I print my logo on magnet products or packaging?
A: Yes. Please notify us formally before production.
Q7: Do you test all your goods before delivery?
A: We have 100% testing before delivery
Q8: How do you keep our business in good long-term relationship?
A:1. We maintain good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend,we sincerely do business with them and make friends, no matter where they come from.

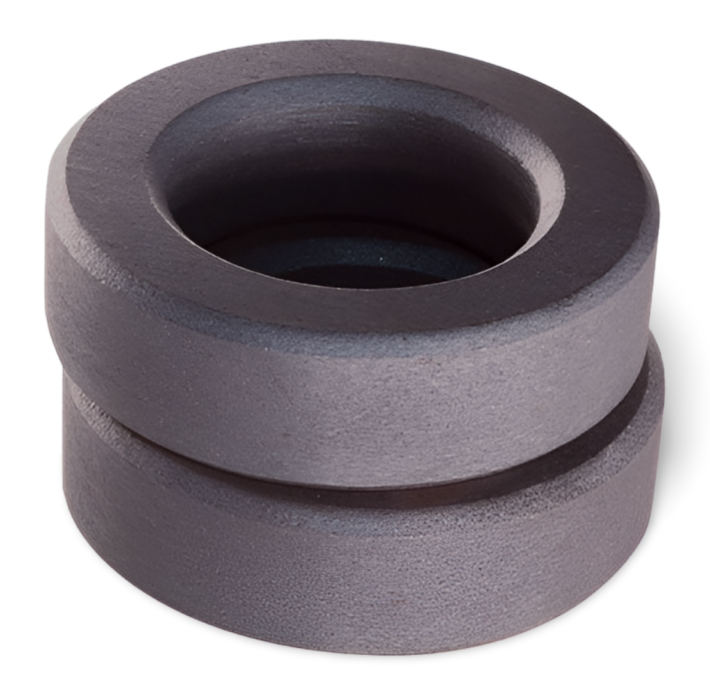

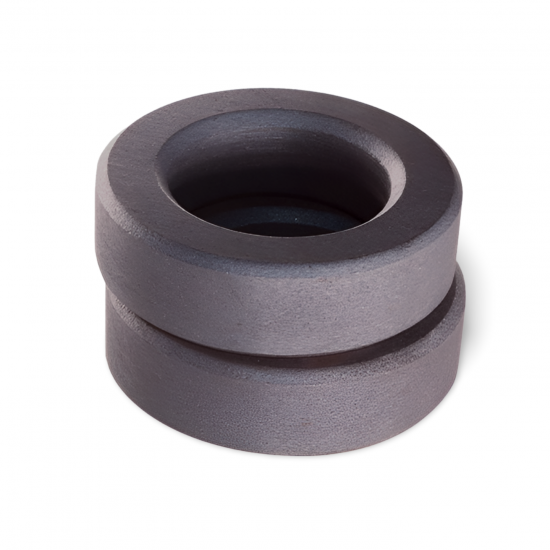

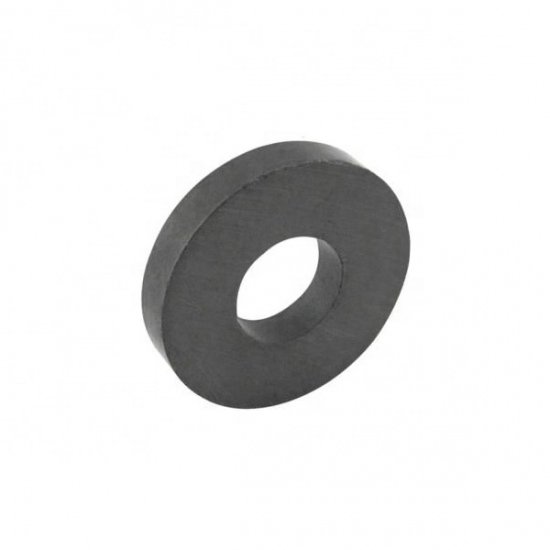

Ring Ferrite Magnet
Dimensions: According to your requirements Grade:Y25,Y30,Y30BH,Y30BH-1,Y35 and etc Magnetized: Axial Magnetized
Arc Ferrite Magnet Y30BH
1.Dimensions: According to your requirements 2.Grade: Y30,Y30BH,Y30BH-1,Y35 and etc 3.Magnetized: Diametrial,Width,Thickness
Block Ferrite Mganet
1.Dimensions: According to your requirements 2.Grade: Y30,Y30BH,Y30BH-1,Y35 and etc 3.Magnetized: Diametrial,Width,Thickness
Radial Magnetization Ferrite Magnet
1.Dimensions: According to your requirements 2.Grade: Y30,Y30BH,Y30BH-1,Y35 and etc 3.Magnetized: Diametrial,Width,Thickness.
