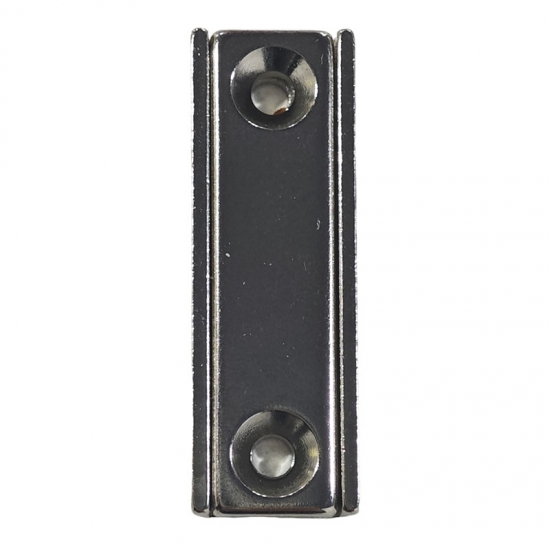

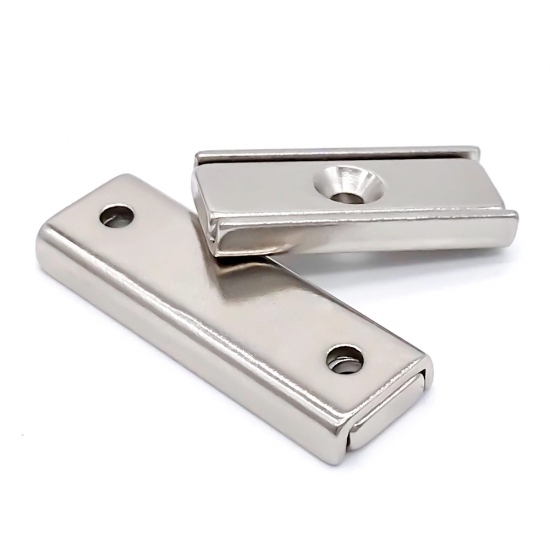

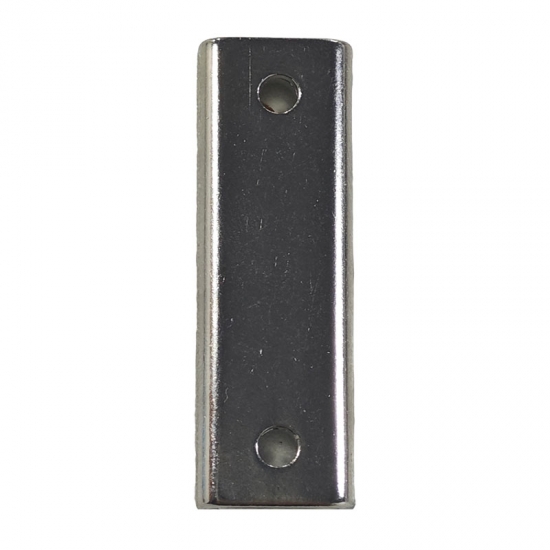

Double-Hole Rectangular Counterbore Pot Magnet Double-Hole Rectangular Counterbore Pot Magnet Double-Hole Rectangular Counterbore Pot Magnet

Double-Hole Rectangular Counterbore Pot Magnet

This rectangular counterbore pot magnet features an integrated stainless steel shell and built-in high-strength NdFeB magnetic core. The double counterbore design enables flush screw mounting without occupying extra space, delivering strong adsorption and reliable holding force, making it ideal for industrial equipment fixation and hardware magnetic applications..

  • ItemNo :

    KM-SNI

  • MOQ :

    100

  • origin :

    China

  • Color :

    Custom

  • Port :

    Xiamen/Ningbo/Shanghai

  • Lead Date :

    25-30 Days
contact now
Product Details

1.Product Description

Designed specifically for installation scenarios with limited space, the rectangular counterbore pot magnet features a rectangular stainless steel shell enclosing a high-grade NdFeB magnetic core. Compared to round pot magnets, it is better suited for fixing long equipment edges and profile slots.

The double counterbore design at both ends supports direct installation with M3-M8 screws for flush mounting, keeping the surface flat without protrusions that affect equipment appearance or use. The stainless steel shell not only protects the magnetic core from impact and corrosion but also effectively concentrates the magnetic field to reduce leakage and improve vertical adsorption force. With a temperature resistance of over 100℃, it adapts to complex working conditions such as humidity, oil pollution, and high temperatures.

The surface is polished or nickel-plated, smooth and burr-free, with dimensional tolerance controlled within ±0.1mm. It supports full-spec customization of length, width, thickness, counterbore position, and adsorption force, and can produce non-standard models according to customer drawings to meet various personalized fixation needs.

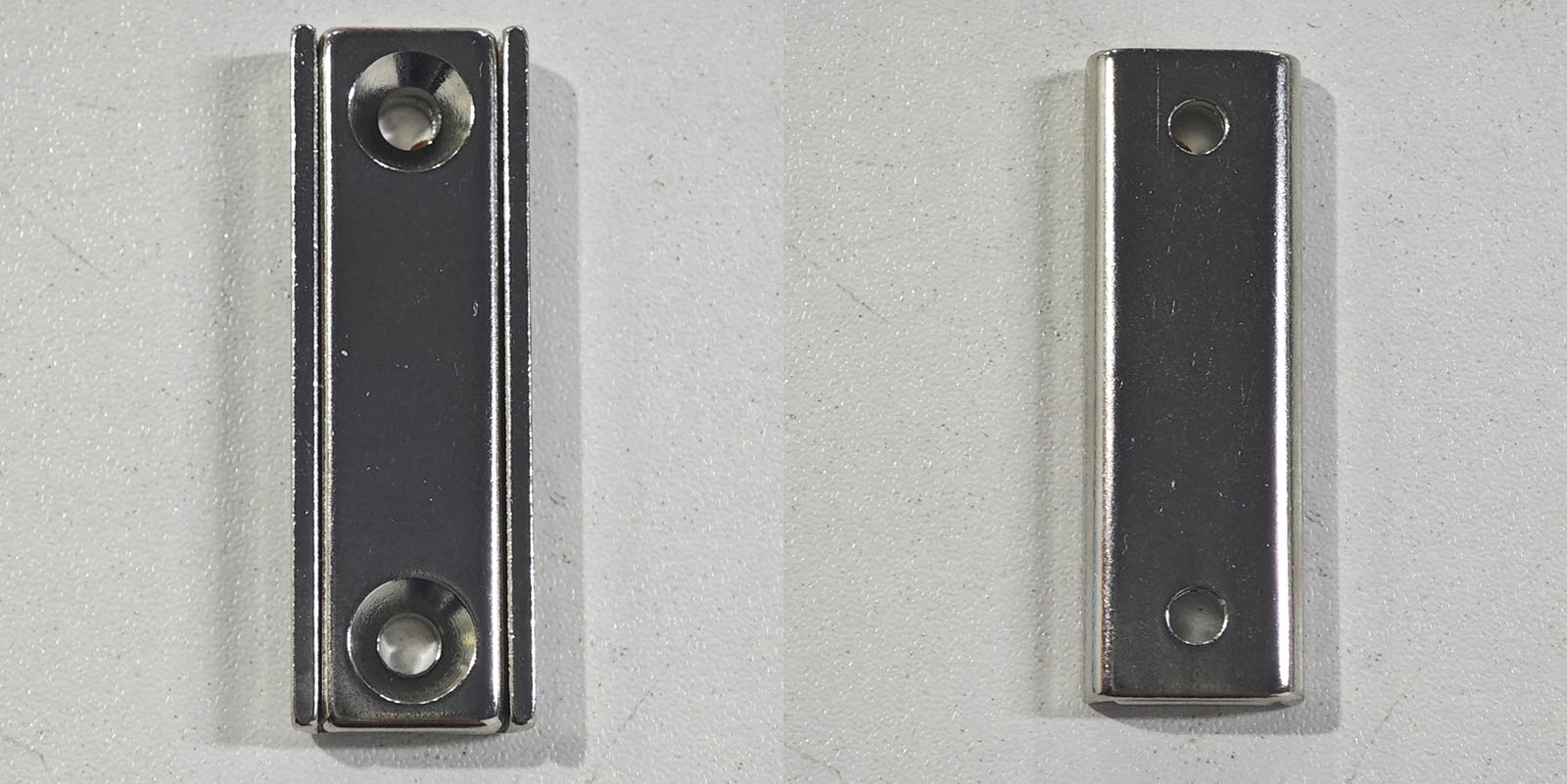

Customized Counterbore Pot Magnet

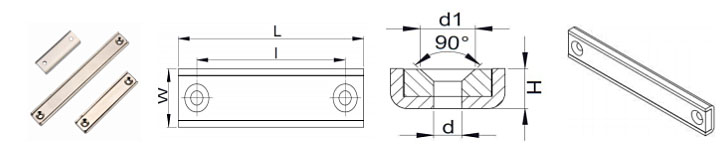

Rectangular Counterbore Pot Magnet drawing


Table of Specifications for Rectangular Counterbore Pot Magnet
Model L (mm) l (mm) W (mm) H (mm) d (mm) d1 (mm) Weight (g) Vertical Breakaway (KG)
SNI40 40 30 13.5 5 3.3 6.5 19 17
SNI50 50 40 13.5 5 3.3 6.5 24 27
SNI60 60 50 13.5 5 3.3 6.5 30 30
SNI80 80 70 13.5 5 3.3 6.5 38 33
SNI100 100 90 13.5 5 3.3 6.5 48 36
SNI120 120 110 13.5 5 3.3 6.5 58 40

2.Application Scenarios

  • Industrial Equipment Fixation: Magnetic fixation of machine tool guards, assembly line baffles, and mold positioning plates, replacing screw installation for easy disassembly and assembly;

  • Hardware Profile Adaptation: Auxiliary fixation of aluminum profiles and steel structure frames. The rectangular pot magnet can be embedded in the profile slot without occupying external space;

  • Electronic Equipment Assembly: Magnetic fixation of chassis covers and equipment shells. The counterbore screw installation does not affect the appearance, making disassembly and maintenance convenient;
  • Ships and Machinery: Temporary fixation of ship cabin doors and mechanical equipment access panels. The corrosion-resistant stainless steel shell adapts to humid environments;
  • Building Decoration Scenarios: Temporary fixation of metal plates and decoration boards, reusable and reducing drilling damage;
  • Custom Equipment Accessories: Magnetic positioning components for automated equipment and fixtures, with non-standard sizes available as needed.

3.How to customize

Let us know your requirements,provide the pot magnet's length/width/thickness dimensions, counterbore specifications and positions, required adsorption force, and working conditions (temperature/environment).

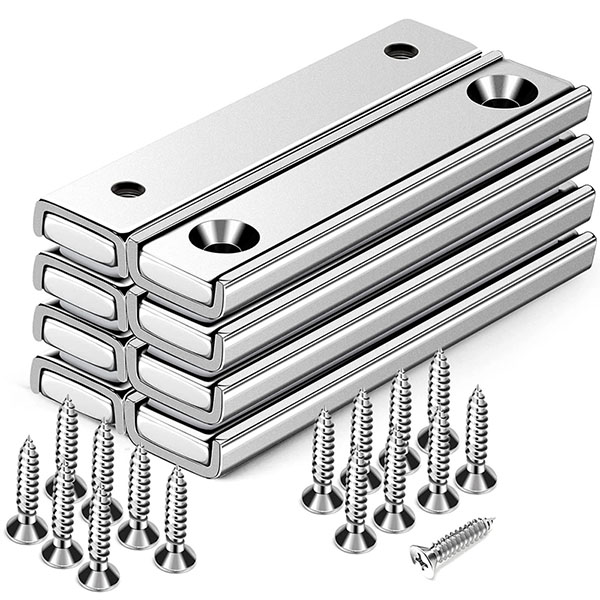

Customized Counterbore Pot Magnet

4.Why Choose Us

  • Stable and Durable Magnetic Force: Adopt high-grade NdFeB magnetic core with concentrated magnetic field and no leakage, no demagnetization after long-term use;
  • Stainless Steel Shell Protection: High-quality stainless steel shell, anti-corrosion and anti-impact, adapting to complex working conditions such as humidity and oil pollution;
  • Convenient Counterbore Installation: Double counterbore design supports flush screw installation with good flush effect, not affecting equipment appearance;
  • Strong Non-standard Customization Capability: Support full-spec customization of size, counterbore, and magnetic force for rectangular pot magnets, quickly responding to personalized needs;
  • Strict Quality Control: Every product passes magnetic force test, dimension inspection, and salt spray test, with a 99.9% factory qualification rate.
  • Industry experience: we have been deeply engaged in the magnetic industry for more than ten years, providing you with professional magnetic solutions.

5.FAQ

Q1: What is the difference between a rectangular counterbore pot magnet and a round pot magnet?

A1: The rectangular pot magnet is more suitable for installation scenarios on long equipment edges and profile slots, with more uniform force and suitable for linear fixation; the round pot magnet is more suitable for point fixation with stronger versatility.

Q2: Can the position and specifications of the counterbore be customized?

A2: Yes, the number, position, and aperture of the counterbores can be customized according to customer needs, supporting single-hole, double-hole, and multi-hole layouts to adapt to different installation requirements.

Q3: Can other surface treatments be done?

A4: Yes, in addition to standard nickel plating/stainless steel polishing, galvanizing, epoxy coating, etc., can be done according to needs to improve corrosion resistance.
