Contact UsThe size,shape and grade of magnet can be produced according to your request.
Welcome to contact us for futher informations.
Available dimensions

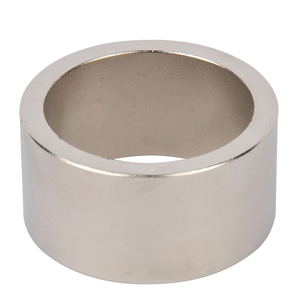

Radial oriented neodymium ring magnets have advantages on assembly technique,the complete ring have less parts,can simplify and easily realize automatic assembly.
The Out diameter higher precision,better coaxiality and verticality.Have flexible way to choose different ways of magnetizing,include magnetizing poles and angles.Also have highly reliable,no risk of magnet peel off.The most important things is to improve the motor performance,as this ring have very small air gap,motor have smoother operating performance with less noise and vibration.
See below dimension range we have alibity to produce this type or fing recently.
Dimension
Size Range
Tolerance
Coaxiality
Cylindricity
Outer Diameter
20-75MM
+/-0.05mm
0.1mm
0.04mm
Inner Diameter
15-68MM
+/-0.05mm
0.1mm
0.04mm
Thickness
2-7MM
+/-0.05mm
0.1mm
0.04mm
Heigh
5-50MM
+/-0.05mm
0.1mm
0.04mm
Grade
N30-N48,N30M-N4M,N30H-N42H,N30SH-N40SH,N20UH-N38UH,N28EH-N35EH
Coating
NiCuNi,Epoexy etc.
Application
Robotics and industrial automatic production line etc
The direction of magnetization
If you are interested in radial bonded neodymium magnet,please click below picture.
Bonded Neodymium Magnet
Magnetic Properties Of Sintered NdFeB Magnet
Magnetic properties of N series | ||||||
NO. | Grade |
Remanence Br mT(KG) |
Coercivity bHc KA/m(KOe) |
Intrinsic Coercivity iHc KA/m(KOe) |
Maximium Energy Product (BH)maxKJ/m3 (MGOe) |
Max Working Temp. (℃) |
1 | N35 | 1170-1220(11.7-12.2) | ≥868(≥10.9) | ≥955(≥12) | 263-287(33-36) | 80℃ |
2 | N38 | 1220-1250(12.2_12.5) | ≥899(≥11.3) | ≥955(≥12) | 287-310(36-39) | 80℃ |
3 | N40 | 1250-1280(12.5-12.8) | ≥907(≥11.4) | ≥955(≥12) | 302-326(38-41) | 80℃ |
4 | N42 | 1280-1320(12.8-13.2) | ≥915(≥11.5) | ≥955(≥12) | 318-342(40-43) | 80℃ |
5 | N45 | 1320-1380(13.2-13.8) | ≥923(≥11.6) | ≥955(≥12) | 342-366(43-46) | 80℃ |
6 | N48 | 1380-1420(13.8-14.2) | ≥923(≥11.6) | ≥955(≥12) | 366-390(46-49) | 80℃ |
7 | N50 | 1400-1450(14.0-14.5) | ≥796(≥10.0) | ≥876(≥11) | 382-406(48-51) | 60℃ |
8 | N52 | 1430-1480(14.3-14.8) | ≥796(≥10.0) | ≥876(≥11) | 398-422(50-53) | 60℃ |
9 | N55 | 1470-1520(14.7-15.2) | ≥796(≥10.0) | ≥876(≥11) | 414-438(52-56) | 60℃ |
Magnetic properties of M series | ||||||
1 | N35M | 1170-1220(11.7-12.2) | ≥868(≥10.9) | ≥1114(≥14) | 263-287(33-36) | 100℃ |
2 | N38M | 1220-1250(12.2-12.5) | ≥899(≥11.3) | ≥1114(≥14) | 287-310(36-39) | 100℃ |
3 | N40M | 1250-1280(12.5-12.8) | ≥923(≥11.6) | ≥1114(≥14) | 302-326(38-40) | 100℃ |
4 | N42M | 1280-1320(12.8-13.2) | ≥955(≥12.0) | ≥1114(≥14) | 318-342(40-43) | 100℃ |
5 | N45M | 1320-1380(13.2-13.8) | ≥955(≥12.5) | ≥1114(≥14) | 342-366(43-46) | 100℃ |
6 | N48M | 1360-1430(13.6-14.3) | ≥1027(≥12.9) | ≥1114(≥14) | 366-390(46-49) | 100℃ |
7 | N50M | 1400-1450(14.0-14.5) | ≥1033(≥13.0) | ≥1114(≥14) | 382-406(48-51) | 100℃ |
8 | N52M | 1430-1480(14.3-14.8) | ≥1033(≥13.0) | ≥1114(≥14) | 398-414(50-52) | 100℃ |
Magnetic properties of H series | ||||||
1 | N33H | 1130-1170(11.3-11.7) | ≥844(≥10.6) | ≥1353(≥17) | 263-287(31-34) | 120℃ |
2 | N35H | 1170-1220(11.7-12.2) | ≥868(≥10.9) | ≥1353(≥17) |
