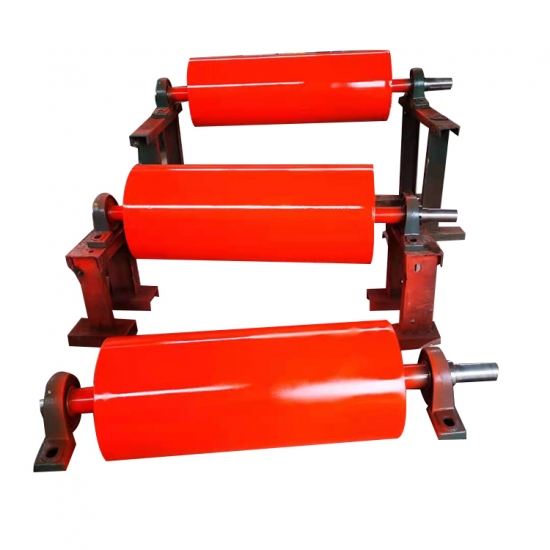

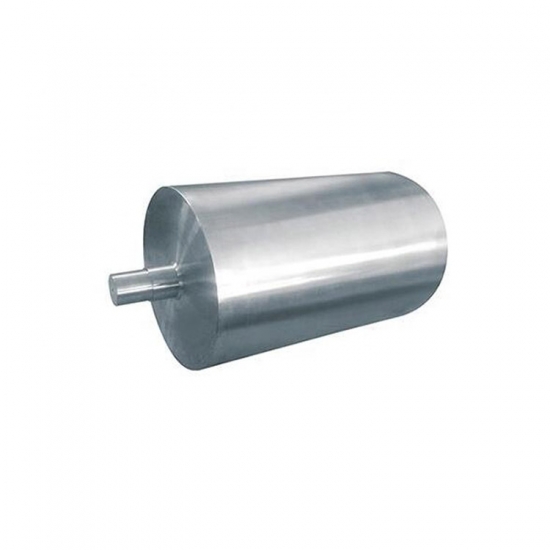

Magnetic Pulley Magnetic Pulley Magnetic Pulley Magnetic Pulley Magnetic Pulley Magnetic Pulley

Magnetic Pulley

10000Gauss,11000Gauss,15000Gauss magnetic roller Permanent magnetic pulley for conveyor belt

.
  • MOQ :

    1
  • origin :

    China
  • Color :

    Bright Sliver
Product Details

Features


1.Can be produced with cost saving ferrite magnets,also can be produced with powerful rare earth magnets if needed.The maximum magnetic strength can reach 15000Gs.

2.Surface material is 304 or 316L stainless steel,good corrosion resistance and no pollution.

3.No electric power required for magnetic field generation.

4.Two side special design ensure good link with motor.

5.Special requirement can be custom made.



Application


Magnetic Pulleys always are placed at the head of

conveyor belt to separate iron particle, iron scrap, tramp

iron and other ferromagnetic objects from more bulk

dry material flow such as iron ore, grain, sand, gravel,

plastics, wood, waste, cullet, rubber, etc


Specifications


Model No.

Dimension(mm)

Weight(kg)

Dia A

B

DiaC

DiaD

PM2030

200

350

30

40

33

PM2040

200

450

30

40

42

PM2050

200

550

30

40

51

PM2060

200

650

30

40

60

PM2070

200

750

30

40

69

PM2080

200

850

30

40

78

PM2090

200

950

30

40

87

PM20100

200

1050

30

40

96

PM3030

300

350

40

50

74

PM3040

300

450

40

50

95

PM3050

300

550

40

50

116

PM3060

300

650

40

50

137

PM3070

300

750

40

50

158

PM3080

300

850

40

50

179

PM3090

300

950

40

50

200

PM30100

300

1050

40

50

221

PM4030

400

350

50

60

131

PM4040

400

450

50

60

168

PM4050

400

550

50

60

205

PM4060

400

650

50

60

242

PM4070

400

750

50

60

279

PM4080

400

850

50

60

316

PM4090

400

950

50

60

353

PM40100

400

1050

50

60

390
