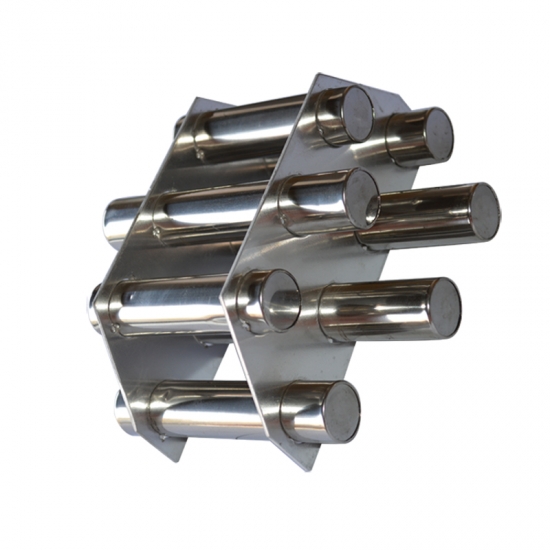

Magnetic Grate-Round shape series Magnetic Grate-Round shape series Magnetic Grate-Round shape series Magnetic Grate-Round shape series

Magnetic Grate-Round shape series

Welded series:Max magnetic strength 11000GS
Screw fix series:Max magnetic strength 12000GS
.
  • MOQ :

    100
  • origin :

    China
  • Color :

    Bright Sliver
Product Details

Features


1. Frame and tube material is 304 or 316L stainless steel,good corrosion resistance and no pollution.

2. Standard magnetic grates are assembled with stainless steel frame and 25mm diameter round bars.

3. The frame and magnetic bar surface can be fine polished and full welded to meet food grade or pharmacy application.Standard working temperature ≦80℃, if needed,max working temperature from 80℃ to 350℃ is also avaiable.


Special design


1. Easy-clean design: This design is more expedient to do cleaning Just take out the magnetic core, the iron impurites will fall from the outer shell. As shown in
Figure 01, 02
2. Multiple layers design: The one in the picture is
double layers. Of course, more layersbetter filter effect. As shown in Figure 06
3Add baffle to direct the material onto or close the rods when it flows down. By this waymore contaminants will be attracted.Baffle can be either
small rods or 90 degree angle. As shown in Figure 03.05
0305
4Adding handles aims for easy operator.Especially with big size which is too heavy to handle. Another
advantage of this design is to avoid contaminants
dropping down when touched by hand.



Application

Magnetic Grate is installed or simply laid-inside of hoppers, housings, and bins to trap and hold ferrous fines,fragmentsand small metal objects. please be aware these grates are built for low-abrasion materials.



Specification-Round shape series


  MODEL NO

Dia(mm)

H(mm)

Bars

Weight(Kg)

XMKM-D100

100

40

2

0.9

XMKM-D150

150

40

3

1.5

XMKM-D200

200

40

4

2.5

XMKM-D250

250

40

5

3.7

XMKM-D300

300

40

6

5.5

XMKM-D350

350

40

7

7.5

XMKM-D400

400

40

8

10

XMKM-D450

450

40

9

12.3

XMKM-D500

500

40

10

15.5


SEND US AN INQUIRY

Want know more information about magnet& magnetic products, Or hope to get its price,Please leave a message.

Related Products

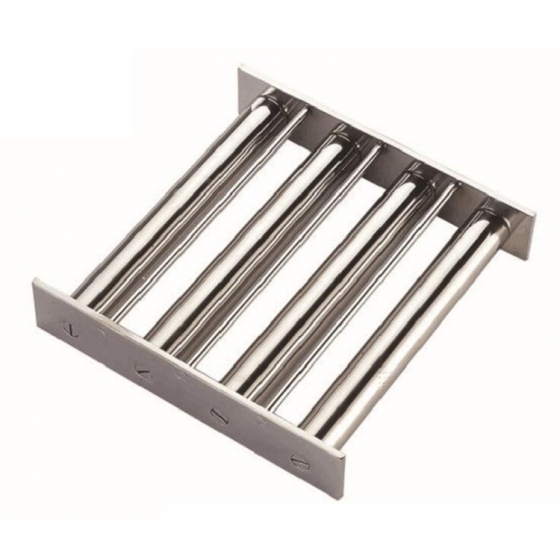

  • 62 Magnetic Grate-Square Shape Series
